EXF #:   SX-300072
Brand:

EMC

Model:   EXPLORER 1300 3RRK
Machine Type:

WIDE BELT (50" - 90", 3-HEAD)

Year of Mfg.:   2021
Condition:   Brand New w/Warranty
Elect./Voltage:   230/400 V, 50/60 Cy, 3 Ph.
List Price:   $ 62,400
Our Price:   Please call
Description:    (view full)

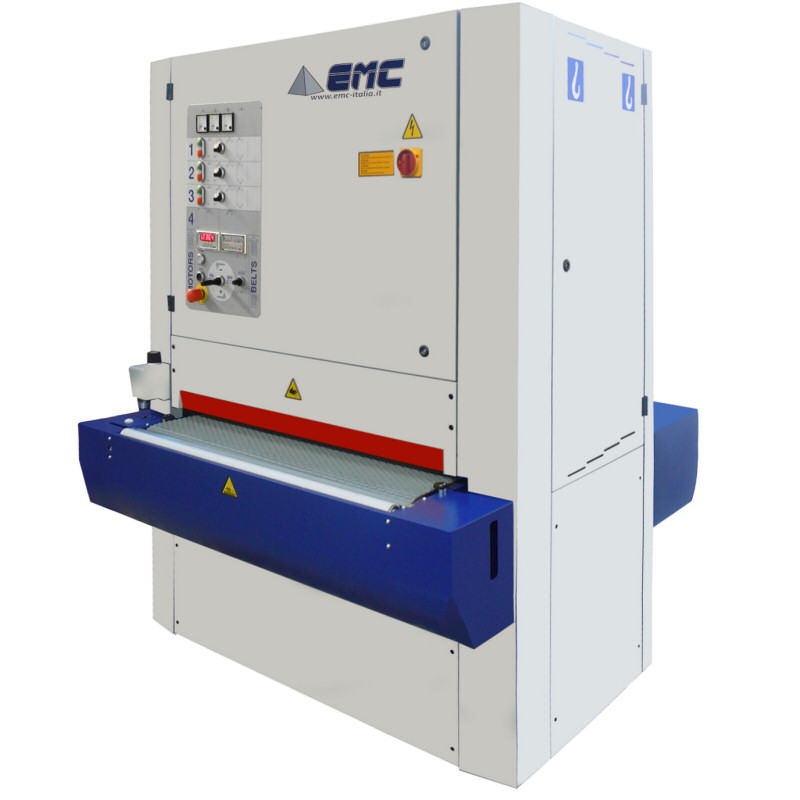

EMC EXPLORER 1300 3RRK ... Wide Belt Sander with (3) Sanding Heads; Roller, Roller and Combination head roller/pad.

Versatile, medium duty machine, ideal for cabinet shops etc.

TECHNICAL DATA

  •  Useful working width 1,300 mm (51").
  •  Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16").
  •  Abrasive belt dimension (length) 1,900 mm (75") x (width) 1,320 mm (52").
  •  Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM).

    Head configuration:

    1st Head:  Steel Contact Roller
  • Roller diameter 142 mm (6")
  • Automatic abrasive belt grit compensation with "Grit-Set System".
  • On/Off Selector control with pneumatic piston to select roller.
  • Motor power 11 kW (15 HP).
  • Automatic Star-delta starter.
  •  Speed rotation: 18 m/Sec (59 FPS). Blower for abrasive belt cleaning.

    2nd Head: Rubber Roller "R"  Roller diameter: 142 mm (5-9/16"). Shore hardness 65. On/off selector pneumatically operated. "Grit-set system" for grit compensation. Constant control to any position with accuracy 0.02 mm. Rotation: Against feed (clockwise). Motor power:11 kW (15 HP). Automatic star-delta starter. Rotating cutting speed: 18 m/Sec (59 FPS). Blower for abrasive belt cleaning.

    3rd Head: Combination Roller & Pad.
  • Roller diameter 142 mm (6").
  • Rubber covered roller with hardness 45 Shore.
  • Automatic abrasive belt grit compensation with "Grit-Set System".
  • On/Off Selector control with pneumatic piston to select roller. Flexible sanding pad. Quick Change System for removable pad with felt, rubber and graphite. Rotating cutting speed 17 m/Sec (55.8 FPS).
  • Driven simultaneously with 2nd head by same main motor. Blower for abrasive belt cleaning.

    Abrasive belts oscillation by means of electronic photocell sensor.

    Feed System:
  •  Working thickness min./max. mm 3 - 170 (1/8" - 6-11/16").
  • Motorized table lifting including fine adjustment, on 4 precision screws. Natural rubber conveyor belt, machined. Automatic feed belt centering device. Electronic digital display for working thickness; resolution 0.1 mm (0.004").
  •  Feed belt speeds adjustable by electronic inverter from 3 to 17 m/Min (10 - 55 FPM).

    Centralized Control Cabinet:
  • Control panel with self-diagnostics alarm control unit.
  •  Analog load meters on main control cabinet.
  • Table lifting-lowering thickness system, electrically controlled.
  • AUTOMATIC Delta - Star starter on main motor and IP 54 protection against dust & moisture.

    Centralized Independent Pneumatic Control Cabinet:
  • Pneumatic air filter with automatic water-drain system.
  •  Pneumatic adjustment for "Grit set system".
  • Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI). IP 54 protection against dust & moisture.

    Safety Features:
  • Anti-kickback infeed protection.
  • Oversized parts infeed protection by swinging bar.
  • Emergency push buttons front & rear.
  • Automatic brake on main motor.
  • Automatic emergency stop and alarm display

    Option:  TAMPICO Cleaning Brush, 150 mm (6") diameter. Please add ...$3,400

    USA UL or Canada CSA Safety Features
Special Note:
Comment:
Written By: Joe Retzlaff
*Dimensions:Available from product manager
*Weight:Please call
*Dimensions & Weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
