EXF #:   SX-300061
Brand:

EMC

Model:   UNDERTOP 1300 2+2
Machine Type:

WIDE BELT (SANDING LINE)

Year of Mfg.:   2021
Condition:   Brand New w/Warranty
Elect./Voltage:   220/440 V, 60 Cy, 3 Ph.
List Price:   $ 181,000
Our Price:   $ 177,500 USD
Financing: $ 3,528 National Capital Leasing
Description:    (view full)

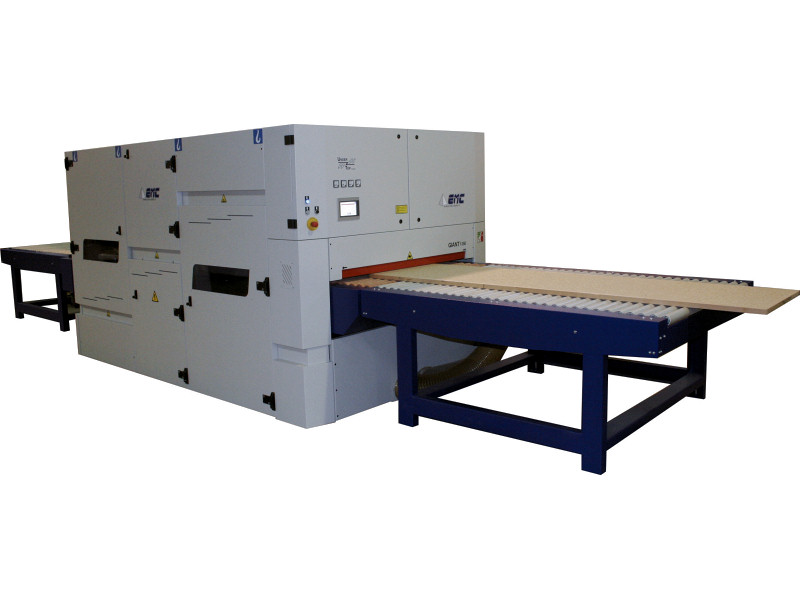

EMC UNDERTOP 1300 2+2 - Wide Belt Sanding Line Top + Bottom, both with (2) Sanding Heads; Steel Roller, Rubber covered Roller.

This machine is equipped to process cement fibers!

Useful working width 1,300 mm (51"). Working thickness min./max. 3 - 160 mm (1/8" - 6-5/16").

Both Bottom + Top units are equipped as follows:

1st Head: Steel Roller "R",  Belt dimensions: 1,900 x 1,320 mm (74" x 52").

  • Roller diameter:190 mm (7-1/2"), spirally grooved.
  •  Constant control to any position with accuracy  0.02 mm.
  •  "Grit-set system" for sanding belt grit compensation.
  • Rotation: Against feed (clockwise).
  • Motor power: 22 kW (30 HP) with Automatic star-delta starter.
  • Abrasive Belt cutting speed: 21 m/Sec (69 FPS).
  •  Air Jet Blower for abrasive belt cleaning.

    2nd Head: Roller "R", Rubber covered, spirally grooved. Belt dimensions: 1,900 x 1,320 mm (74" x 52").
  • Roller diameter:190 mm (7-1/2"). Shore hardness 85.
  •  Constant control to any position with accuracy  0.02 mm.
  •  "Grit-set system" for sanding belt grit compensation.
  • Rotation: Against feed (clockwise).
  • Motor power: 15 kW (20 HP) with Automatic star-delta starter.
  • Abrasive Belt cutting speed: 21 m/Sec (69 FPS).
  •  Air Jet Blower for abrasive belt cleaning.

    Feed system:
  •  Constant pass line, 980 mm (38-9/16") from floor.
  •  Idle table rollers support in infeed and outfeed.
  •  Rubber covered presser rollers, grooved.
  •  Variable feed belt speed, adjustable from 3 to 19 m/Min (9.8 - 62 FPM), Inverter Controlled, synchronized feed speed between both machines.
  • Motorized height adjustment on (4) precision screws.
  •  Large diameter screws on machined guides with columns and pistons.
  •  Automatic feed belt centering device.
  •  Pre-welded machined working table.
  • Pneumatic air floating pressure holddown shoes at infeed, in middle position, and in outfeed position. These pressure holddown shoes are chrome hardened for processing of cement fibers!

    General Machine Features:
  • Independent main motors.
  • Analog ammeters, for each motor, on main control cabinet.
  • Electronic motorized grit set system, control from touch screen for each (head) working group.

    Electronic programmable color TOUCH SCREEN LCD display, 7" wide
  • Resolution 640 x 480 pixels.
  •  PLC with micro-processor of latest generation, modular and expandable.
  •  Memory capacity: (100) working programs or more.
  •  Graphic synoptic to facilitate programming. Front protection IP 65 against dust & moisture.

    Software facilities:
  •  Automatic motor sequence starting.
  •  Display report and reset of alarms (self diagnostic) with memory records.
  •  Command, programming and display for:
     ● all electronic pad functions.
     ● thickness.
     ● feeding.
     ● all speed control inverters.
     ● selected groups.
     ● blowers, including compressed air saving function.

    Options Included:
  •  Vacuum beds both on top + bottom, 4 kw (5,5 HP) each. Vacuum unit for holddown of smaller parts, mounted inside of the machine base and equipped with silencer.
  • The insides of the dust hoods are tungsten hardened for the processing of cement fibers.
  • Telemetry for online support from EMC.

    Centralized Control Cabinet:  IP 54 protection against dust & moisture. Analog ammeter on main control cabinet. Table (Conveyor Bed) lifting-lowering thickness system electrically controlled. AUTOMATIC Delta - Star starter on abrasive belt motors.

    Centralized independent pneumatic control cabinet: IP 54 protection against dust & moisture. Pneumatic air filter with automatic water-drain system. Pneumatic adjustment for "Grit set system". Pneumatic plant working without lubrication. Compressed air pressure 6 bar (85 PSI)

    For a SCOTCH BRITE Brush roller, please add... US $ 4,250 per side, bottom + top = US $ 8,500
