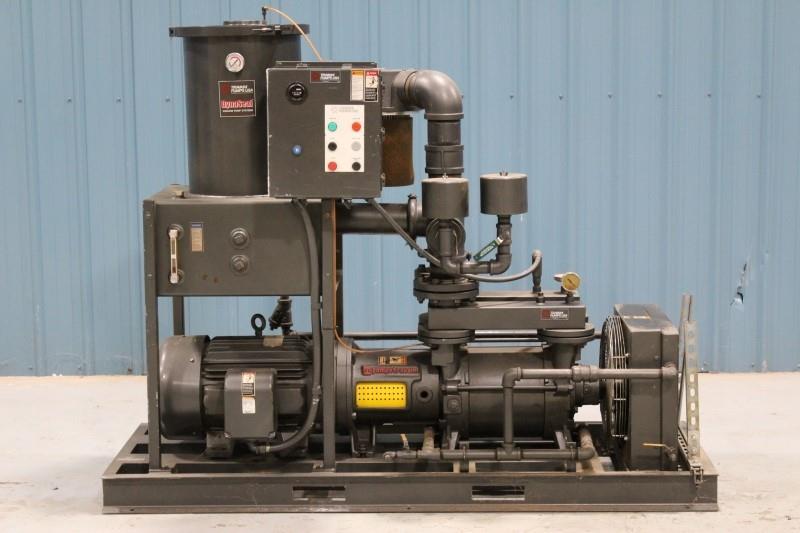

TRAVAINI TRO 500S-1A VACUUM PUMP (LIQUID RING)
 alt = 'TRAVAINI TRO 500S-1A VACUUM PUMP (LIQUID RING)' title='TRAVAINI TRO 500S-1A VACUUM PUMP (LIQUID RING)'/>
|
|
|
|
|
|
For Immediate Help Contact: |
|
|
|
| Brand: |
TRAVAINI |
||
| Model: | TRO 500S-1A | ||
| Category: |
VACUUM PUMPS |
||
| Machine Type: |
VACUUM PUMP (LIQUID RING) |
||
| Year of Mfg.: | 2005 | ||
| Condition: |
Good Condition
|
||
| Elect./Voltage: | 460 V, 60 Cy, 3 Ph. | ||
| Value New: | $ 35,000 | ||
| Price: |
$ 18,875 USD |
(Convert) | |
| Financing: | $ 384 National Capital Leasing | ||
| Region: | MID ATLANTIC (Click for Regional Map) | |||
| EXF #: | VP-010307 |
|
||
|
Description:
(view full)
TRAVAINI TRO 500S-1A 40 HP liquid ring vacuum pump 24,941Hours:
Nominal capacity 500 ACFM @ 20" HgV; max Vacuum 27" HgV.  Specifications: Pump materials include cast iron housing, ductile iron impeller and stain-less steel shaft. Shaft seals are carbon face with Viton elastomers. 40 HP, 460 Volt, 3-Phase, 60 Hz, TEFC monoblock assembly for direct drive, no field alignment needed. Sealing fluid re-circulating system includes reservoir of carbon steel with fluid level gauge and drain, a high-efficiency discharge separator, and oversized heat exchanger. High temp switch to protect against over temp operation.- Complete with a charge of Dynalube fluid. Suction line accessories include an inlet check valve, vacuum gauge (0 - 30" HgV), inlet filter assembly, manual unloader valve, and vacuum relief valve. Heat exchanger is an air cooler type made from aluminum and extended surface fins. Electrical controls include: Starter/overload reset, pump running light, hour meter, hi-temp light, and terminal blocks, all mounted in a NEMA 12 cabinet. |
| Special Note: | SOLD |
| Comment: | TRAVAINI TRO 500S-1A 40 HP liquid ring vacuum pump 24,941Hours! |
| Written By: |
|
| *Dimensions: | 84" L x 35" W x 70" H |
| *Weight: | 2,300 Lbs |
|
*Dimensions & Weight data are based on 3rd party information and could be incorrect;
please verify & confirm if accurate dimensions & weight are required.
|
|
|
|
|
|
|
|
TRAVAINI TRO 500S-1A 40 HP liquid ring vacuum pump 24,941Hours:
Nominal capacity 500 ACFM @ 20" HgV; max Vacuum 27" HgV.
Specifications:
Pump materials include cast iron housing, ductile iron impeller and stain-less steel shaft. Shaft seals are carbon face with Viton elastomers.
40 HP, 460 Volt, 3-Phase, 60 Hz, TEFC monoblock assembly for direct drive, no field alignment needed.
Sealing fluid re-circulating system includes reservoir of carbon steel with fluid level gauge and drain, a high-efficiency discharge separator, and oversized heat exchanger.
High temp switch to protect against over temp operation.- Complete with a charge of Dynalube fluid.
Suction line accessories include an inlet check valve, vacuum gauge (0 - 30" HgV), inlet filter assembly, manual unloader valve, and vacuum relief valve.
Heat exchanger is an air cooler type made from aluminum and extended surface fins.
Electrical controls include: Starter/overload reset, pump running light, hour meter, hi-temp light, and terminal blocks, all mounted in a NEMA 12 cabinet.
Nominal capacity 500 ACFM @ 20" HgV; max Vacuum 27" HgV.
Specifications: Pump materials include cast iron housing, ductile iron impeller and stain-less steel shaft. Shaft seals are carbon face with Viton elastomers.
40 HP, 460 Volt, 3-Phase, 60 Hz, TEFC monoblock assembly for direct drive, no field alignment needed. Sealing fluid re-circulating system includes reservoir of carbon steel with fluid level gauge and drain, a high-efficiency discharge separator, and oversized heat exchanger. High temp switch to protect against over temp operation.- Complete with a charge of Dynalube fluid. Suction line accessories include an inlet check valve, vacuum gauge (0 - 30" HgV), inlet filter assembly, manual unloader valve, and vacuum relief valve. Heat exchanger is an air cooler type made from aluminum and extended surface fins. Electrical controls include: Starter/overload reset, pump running light, hour meter, hi-temp light, and terminal blocks, all mounted in a NEMA 12 cabinet.
