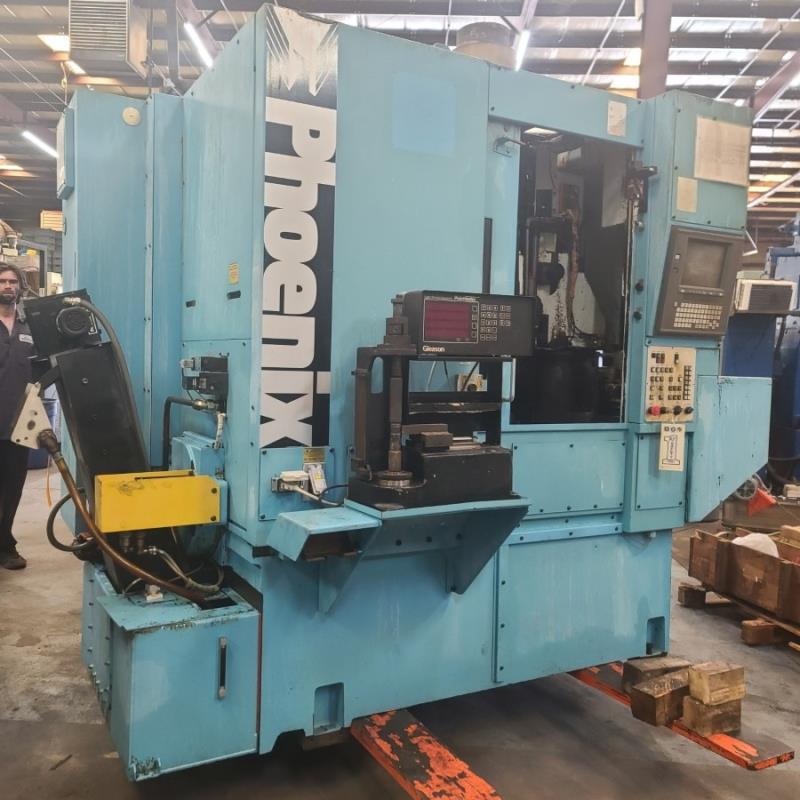

GLEASON PHOENIX 125GH GEAR HOBBER
alt = '' title=''/>
|
|
|
|
For Immediate Help Contact: |
|
|
|
| Brand: |
GLEASON |
||
| Model: | PHOENIX 125GH | ||
| Category: |
GEAR MACHINERY |
||
| Machine Type: |
GEAR HOBBER |
||
| Year of Mfg.: | 2002 | ||
| Condition: |
Very good condition
|
||
| Elect./Voltage: | 460 V, 60 Cy, 3 Ph. | ||
| Value New: | $ 285,000 | ||
| Price: |
Request Quote |
||
| Region: | MIDWEST (Click for Regional Map) | |||
| EXF #: | HQ-010078 | |||
|
Description:
(view full)
GLEASON Phoenix 125GH CNC 7-Axis Gear Hobber
Specifications:  Max. workpiece diameter: 4.52" / 125 mm / 200mm option Min. workpiece Diameter: 0.25" / 6.4 mm Max. Pitch / Module: 8 NDP/ 3.2 Module Max. Axial slide travel: 11.81"/ 300 mm Max. hob head swivel: -180° + 90° Max. diameter hob: 4.53" / 115 mm Max. hob length: 8.46" / 215 mm Max. hob shifting length: 7.87" / 200 mm Max. work head speed: 1500 RPM Hob Head drive rating: 15 HPEquipped with: Fanuc 160I-M CNC controls Special Hi-Helix hob head 180 position loader with loading station Chip conveyor Mist collection Misc. tooling and grippers Books and manuals |
| Special Note: | |
| Comment: | Great size and capacity for your shop... Good runner! |
| Written By: |
|
| *Dimensions: | Available from product manager |
| *Weight: | Please call |
|
*Dimensions & Weight data are based on 3rd party information and could be incorrect;
please verify & confirm if accurate dimensions & weight are required.
|
|
|
|
|
|
|
|
GLEASON Phoenix 125GH CNC 7-Axis Gear Hobber
Specifications:
Max. workpiece diameter: 4.52" / 125 mm / 200mm option
Min. workpiece Diameter: 0.25" / 6.4 mm
Max. Pitch / Module: 8 NDP/ 3.2 Module
Max. Axial slide travel: 11.81"/ 300 mm
Max. hob head swivel: -180° + 90°
Max. diameter hob: 4.53" / 115 mm
Max. hob length: 8.46" / 215 mm
Max. hob shifting length: 7.87" / 200 mm
Max. work head speed: 1500 RPM
Hob Head drive rating: 15 HP
Equipped with:
Fanuc 160I-M CNC controls
Special Hi-Helix hob head
180 position loader with loading station
Chip conveyor
Mist collection
Misc. tooling and grippers
Books and manuals
Specifications:
Max. workpiece diameter: 4.52" / 125 mm / 200mm option Min. workpiece Diameter: 0.25" / 6.4 mm Max. Pitch / Module: 8 NDP/ 3.2 Module Max. Axial slide travel: 11.81"/ 300 mm Max. hob head swivel: -180° + 90° Max. diameter hob: 4.53" / 115 mm Max. hob length: 8.46" / 215 mm Max. hob shifting length: 7.87" / 200 mm Max. work head speed: 1500 RPM Hob Head drive rating: 15 HPEquipped with:
Fanuc 160I-M CNC controls Special Hi-Helix hob head 180 position loader with loading station Chip conveyor Mist collection Misc. tooling and grippers Books and manuals
Hobbing is a machining process for gear cutting, cutting splines, and cutting sprockets on a hobbing machine, which is a special type of milling machine. The teeth or splines of the gear are progressively cut into the material by a series of cuts made by a cutting tool called a hob.
