EISENMANN Dual Stream WET ELECTROSTATIC PRECIPITATOR (WESP) System for Gas Cleaning with Adjustable Venturi Type and Spray Tower Scrubber section; Complete with the following major components and features:
Instrumentation including; pressure, flow, temperature, level and pH sensors.

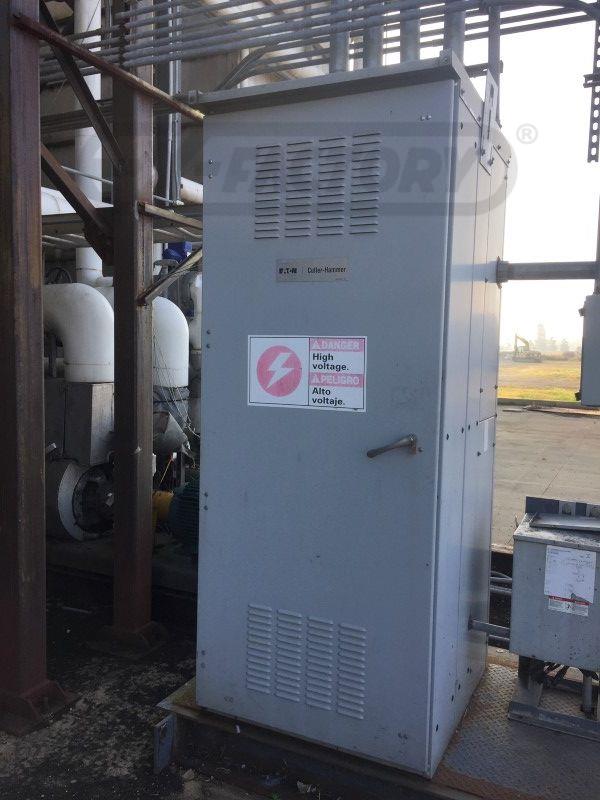

Complete control panel including Man-Machine Interface, motors starters, relays, power supplies and disconnect.
Pump skid package including: 1500 GPM re-circulation pump, bleed pump and VFD, interconnecting piping and valves.
Platforms and ladders WESP System Design:
Total Inlet Gas Stream Flow Rate Wet Basis 52,000 and 62,000 (ACFM)
Type: Square Tube
Direction of Flow: Down Flow
System Weight (dry): 24 tons
System Weight (wet, operating): 47 tons
System Weight: 47 tons
Footprint of WESP Box (L x W x H): 11’ x 11’ x 24’
Overall Footprint (L x W x H): 39’ x 12’ x 35’
Material of Construction
WESP: 304 SS
Spray Tower: FRP
Venturi Adjustable Rod Deck Scrubber: AL6XN, Hastelloy, FRP
Piping: PVC, PP
|
