HOLZ-HER 1626 BORING MACH. (CONSTR. & LINE BORING)
 alt = 'HOLZ-HER 1626 BORING MACH. (CONSTR. & LINE BORING)' title='HOLZ-HER 1626 BORING MACH. (CONSTR. & LINE BORING)'/>
|
|
|
|
|
|
For Immediate Help Contact: |
|
|
|
| Brand: |
HOLZ-HER |
||
| Model: | 1626 | ||
| Category: |
BORING MACH. - 32 MM SYS. |
||
| Machine Type: |
BORING MACH. (CONSTR. & LINE BORING) |
||
| Year of Mfg.: | 1987 | ||
| Condition: |
Good Condition
|
||
| Elect./Voltage: | 220 V, 60 Cy, 3 Ph. | ||
| Value New: | $ 14,800 | ||
| Price: |
$ 2,200 USD |
(Convert) | |
| Financing: | $ 45 National Capital Leasing | ||
| Region: | SOUTHEAST (Click for Regional Map) | |||
| EXF #: | BM-012356 |
|
||
|
Description:
(view full)

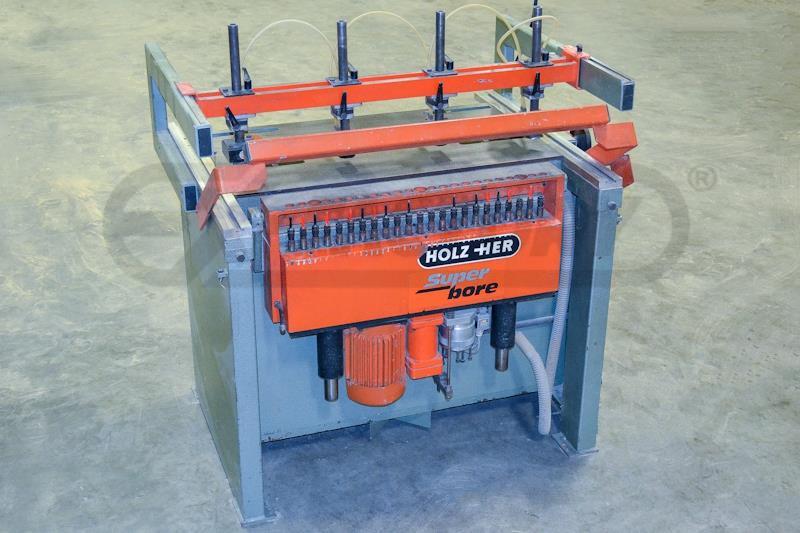

HOLZ-HER SUPERBORE 1626 DB-23-S 23-Spindle Boring Machine
Specifications:  Drills vertically from bottom & horizontally from rear. Workpiece width (1 or 2 Side stops) 925 mm (36.42") & 770 mm (30.32"), Table size 21" LR x 37" FB x 880 mm (34.65") H. Spindle speed 3,000 RPM, Spindle center distance 32 mm, Max. Distance between spindle centers 704 mm (27.72"). Boring stroke: 0 - 80 mm (0 - 3.15") (Horizontal), 0 - 70 mm (0 - 2.76") (Vertical).Equipped with: 90° Pneumatic tilt, (4) 2" Dia. Pneumatic overhead hold-downs, Pneumatic foot pedal control for clamping & boring. 6-Position turret stop for drill depth, Drill head with Mechanical digital readout, Simultaneous right & left fence in-and-out adjustment with Mechanical digital readout.NOTE: No fences. |
| Special Note: | SOLD |
| Comment: | Oldie but goodie! |
| Written By: |
|
| *Dimensions: | 52" L x 38" W x 50" H |
| *Weight: | 1,250 Lbs |
|
*Dimensions & Weight data are based on 3rd party information and could be incorrect;
please verify & confirm if accurate dimensions & weight are required.
|
|
|
|
|
|
|
|
HOLZ-HER SUPERBORE 1626 DB-23-S 23-Spindle Boring Machine
Specifications:
Drills vertically from bottom & horizontally from rear.
Workpiece width (1 or 2 Side stops) 925 mm (36.42") & 770 mm (30.32"), Table size 21" LR x 37" FB x 880 mm (34.65") H.
Spindle speed 3,000 RPM, Spindle center distance 32 mm, Max. Distance between spindle centers 704 mm (27.72").
Boring stroke: 0 - 80 mm (0 - 3.15") (Horizontal), 0 - 70 mm (0 - 2.76") (Vertical).
Equipped with:
90° Pneumatic tilt, (4) 2" Dia. Pneumatic overhead hold-downs, Pneumatic foot pedal control for clamping & boring.
6-Position turret stop for drill depth, Drill head with Mechanical digital readout, Simultaneous right & left fence in-and-out adjustment with Mechanical digital readout.
NOTE: No fences.
Specifications:
Drills vertically from bottom & horizontally from rear. Workpiece width (1 or 2 Side stops) 925 mm (36.42") & 770 mm (30.32"), Table size 21" LR x 37" FB x 880 mm (34.65") H. Spindle speed 3,000 RPM, Spindle center distance 32 mm, Max. Distance between spindle centers 704 mm (27.72"). Boring stroke: 0 - 80 mm (0 - 3.15") (Horizontal), 0 - 70 mm (0 - 2.76") (Vertical).Equipped with:
90° Pneumatic tilt, (4) 2" Dia. Pneumatic overhead hold-downs, Pneumatic foot pedal control for clamping & boring. 6-Position turret stop for drill depth, Drill head with Mechanical digital readout, Simultaneous right & left fence in-and-out adjustment with Mechanical digital readout.NOTE: No fences.
The 32 mm cabinet-making system is a manufacturing method, used in the production of RTA (ready to assemble) furniture. European-style - frameless furniture, custom cabinets, and other RTA furnishings are manufactured using the 32 mm cabinet-making system. Although this system is measured using the metric system, this is a practice used globally.
