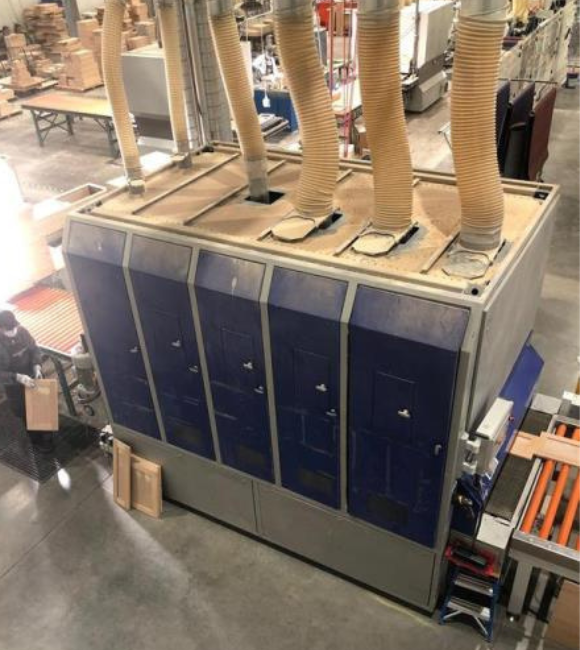

2012 HEESEMANN MFA 10
|
| |
53" 4-Head Wide Belt Sander, with the following specifications:
- Head Configuration: 1st, 2nd & 3rd Heads, each with Spiral rubber contact roll & 45 kW, 44 kW, & 37 kW Motors respectively, 4th Head with Platen
- Final Station: Rotating air-jet blow-off
- Abrasive belt size: 1,400 x 3,250 mm
- Variable sanding head & feed speeds
- Electronic belt tracking & Pneumatic motorized thickness control
- Underwent complete rebuild for $50,000
|
|
| |
|
2006 HEESEMANN LSM 8 OSR
|
| |
54" 3-Head Orbital Sander, for abrasive belt cross-grain scratch removal, with the following highlighted specifications:
- Head Configuration: 1st, 2nd, & 3rd Orbital Heads, each with 5" W Platen, Dual orbital action, 3 kW & 1-1/2 HP Motors
- Rotary Brush: 6" Maximum diameter with 3-1/2 HP Motor
- Variable feed speeds 15 - 66 FPM
- Automatic conveyor belt tracking
- Automatic parts thickness with 1/8" - 4‑5/8" thickness range & programmable height adjustment
|
|
| |
|
|
