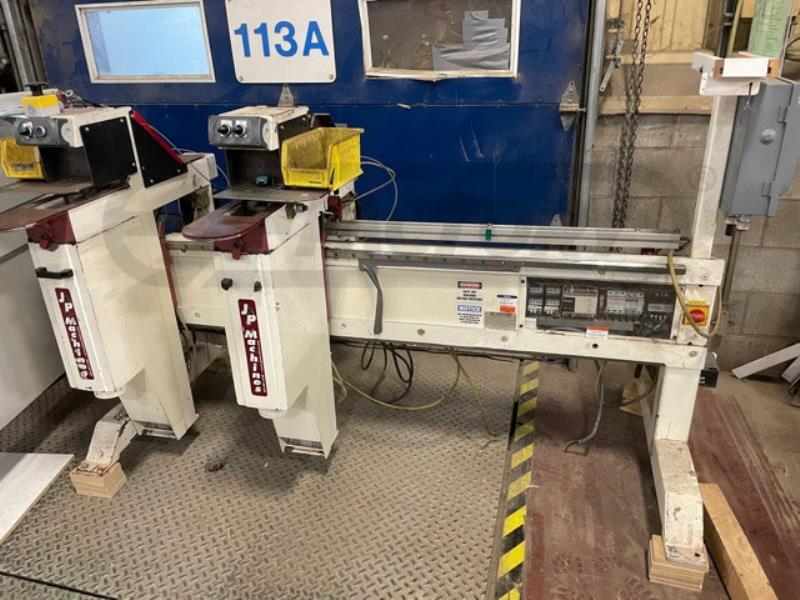

J & P MACHINES DH 2N BORING MACH. (HINGE)
 alt = 'J & P MACHINES DH 2N BORING MACH. (HINGE)' title='J & P MACHINES DH 2N BORING MACH. (HINGE)'/>
|
|
|
|
|
|
For Immediate Help Contact: |
|
|
|
| Brand: |
J & P MACHINES |
||
| Model: | DH 2N | ||
| Category: |
BORING MACH. - 32 MM SYS. |
||
| Machine Type: |
BORING MACH. (HINGE) |
||
| Year of Mfg.: | N/A | ||
| Condition: |
Good Condition
|
||
| Elect./Voltage: | 440 V, 60 Cy, 3 Ph. | ||
| Value New: | $ 22,500 | ||
| Price: |
$ 9,450 USD |
(Convert) | |
| Financing: | $ 192 National Capital Leasing | ||
| Region: | EASTERN CDN (Click for Regional Map) | |||
| EXF #: | BM-012341 | |||
|
Description:
(view full)
J & P MACHINES - DH 2N, ...Double Hinge Drilling & Inserting
Double Drilling & Hinge Inserting Machine. Features:  Fast setup from small to large doors. User-friendly movable head, which is easy to move to the preset stops. Pneumatic lock allows drilling at any distance. Quick-change hopper magazines with a loading capacity of (35) hinges. Insertion slide with UHMW non-wearing plastic. Creates chip-free bores on melamine and other sensitive materials by drilling from below. Boring heads with hardened gears and spindles. Linear bearings on slides for up & down movement. No tools required for precision depth adjustments. Double safety controls with: Metal detectors and photo eye prevent the boring unit from cycling again into the previously installed hinge. Dust extraction hoods with 4″ dia. Min. closing distance between heads is 7″ (180 mm). Max. opening distance is 60″ (1,520 mm); other sizes available upon request. PLC Control and proximity sensors. Emergency cord switch.Specifications: 2 HP - 3,600 RPM, 440 V, 3-Phase motors. Cycle time approx. (4) Sec. Compressed air 90 PSI. Weighs approximately 600 kG Dim.: 80″ L x 32″ W x 50″ H. |
| Special Note: | Rare Find |
| Comment: | Sturdily built machine made in Canada! |
| Written By: |
|
| *Dimensions: | 80" L x 32" W x 50" H |
| *Weight: | 1,320 Lbs |
|
*Dimensions & Weight data are based on 3rd party information and could be incorrect;
please verify & confirm if accurate dimensions & weight are required.
|
|
|
|
|
|
|
|
J & P MACHINES - DH 2N, ...Double Hinge Drilling & Inserting
Double Drilling & Hinge Inserting Machine.
Features:
Fast setup from small to large doors.
User-friendly movable head, which is easy to move to the preset stops.
Pneumatic lock allows drilling at any distance.
Quick-change hopper magazines with a loading capacity of (35) hinges.
Insertion slide with UHMW non-wearing plastic.
Creates chip-free bores on melamine and other sensitive materials by drilling from below.
Boring heads with hardened gears and spindles.
Linear bearings on slides for up & down movement.
No tools required for precision depth adjustments.
Double safety controls with: Metal detectors and photo eye prevent the boring unit from cycling again into the previously installed hinge.
Dust extraction hoods with 4″ dia.
Min. closing distance between heads is 7″ (180 mm).
Max. opening distance is 60″ (1,520 mm); other sizes available upon request.
PLC Control and proximity sensors.
Emergency cord switch.
Specifications:
2 HP - 3,600 RPM, 440 V, 3-Phase motors.
Cycle time approx. (4) Sec.
Compressed air 90 PSI.
Weighs approximately 600 kG
Dim.: 80″ L x 32″ W x 50″ H.
Double Drilling & Hinge Inserting Machine.
Features:
Fast setup from small to large doors. User-friendly movable head, which is easy to move to the preset stops. Pneumatic lock allows drilling at any distance. Quick-change hopper magazines with a loading capacity of (35) hinges. Insertion slide with UHMW non-wearing plastic. Creates chip-free bores on melamine and other sensitive materials by drilling from below. Boring heads with hardened gears and spindles. Linear bearings on slides for up & down movement. No tools required for precision depth adjustments. Double safety controls with: Metal detectors and photo eye prevent the boring unit from cycling again into the previously installed hinge. Dust extraction hoods with 4″ dia. Min. closing distance between heads is 7″ (180 mm). Max. opening distance is 60″ (1,520 mm); other sizes available upon request. PLC Control and proximity sensors. Emergency cord switch.Specifications:
2 HP - 3,600 RPM, 440 V, 3-Phase motors. Cycle time approx. (4) Sec. Compressed air 90 PSI. Weighs approximately 600 kG Dim.: 80″ L x 32″ W x 50″ H.
The 32 mm cabinet-making system is a manufacturing method, used in the production of RTA (ready to assemble) furniture. European-style - frameless furniture, custom cabinets, and other RTA furnishings are manufactured using the 32 mm cabinet-making system. Although this system is measured using the metric system, this is a practice used globally.
